    Thread: Welded in a new core support and Motor Mount

    1. #1
      Still love my daily driver
      Join Date
      Dec 2006
      Location
      A Sinful Land
      Posts
      605
      Garage empty: add car
      Thanks
      0
      Thanked 2 Times in 2 Posts

      Welded in a new core support and Motor Mount

      Hi,

      I haven't posted in a while, but have completed some rather major fabrication work on the front of the Aveo adding a new lower core support and modified Scion TC Motor mount. Here's a link to the pictures, along with some pictures in the thread.

      If you have any questions, let me know.

      Fabricating a Front Motor Mount and Lower Core Support | Unique Motorsports







    2. #2
      Still love my daily driver
      Join Date
      Aug 2009
      Location
      Florida
      Posts
      526
      Thanks
      0
      Thanked 0 Times in 0 Posts
      What is the purpose of the lower support? never seen that before

    3. #3
      Still love my daily driver
      Join Date
      Dec 2006
      Location
      A Sinful Land
      Posts
      605
      Garage empty: add car
      Thanks
      0
      Thanked 2 Times in 2 Posts
      Quote Originally Posted by reddemonx92 View Post
      What is the purpose of the lower support? never seen that before
      Its to help keep the motor from twisting back and forth. I have had to rework all three mounts and my transmission bell housing is broke due to bad motor mount design. I finally gave in and did what Chevy should have done originally.

      Chad

    4. #4
      Lifetime owner
      Join Date
      Sep 2008
      Location
      Pittsburgh
      Posts
      8,013
      Garage empty: add car
      Thanks
      2
      Thanked 170 Times in 141 Posts
      this get two thumbs up from me.


    5. #5
      Still love my daily driver
      Join Date
      Dec 2006
      Location
      A Sinful Land
      Posts
      605
      Garage empty: add car
      Thanks
      0
      Thanked 2 Times in 2 Posts
      Thanks! Here are some examples of my motor mount issues.

      Transmission mount separated one night as I pulled into a parking lot. The bolts ripped through the aluminum and the motor came to rest on my control arm brace.



      I had to rig up a temporary brace after this, not shown in this picture which lasted well over a year.



      Wish I filled them or mostly filled them early on, I could have avoided all of this if I did.

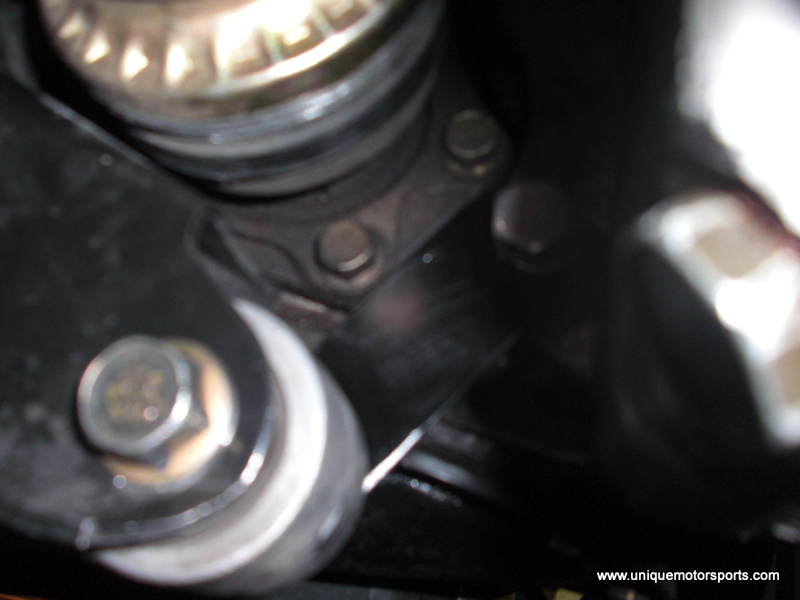

      the temporary brace



      This last picture if you look on the bottom, you'll see threads. This is where one of the bolts go through the transmission bell housing... I no longer have that section of bell housing.






      Attached Images Attached Images
      Last edited by subachad; 03-15-2013 at 02:34 AM.
